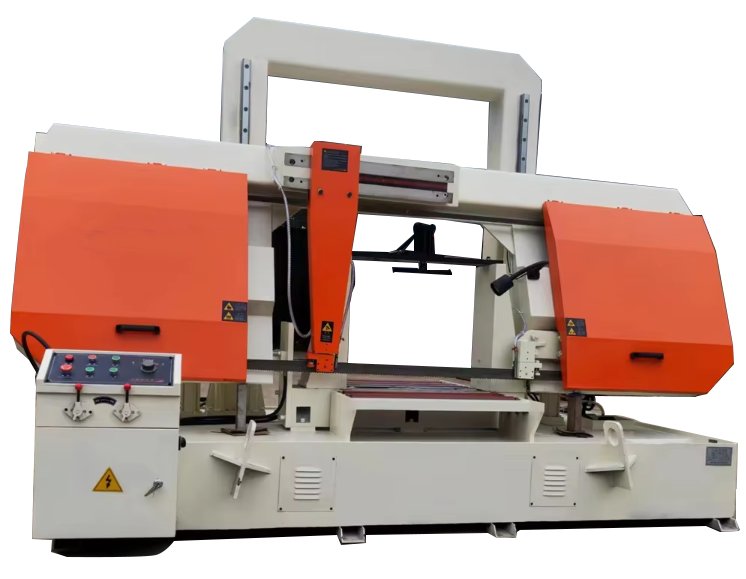

CNC Band Saw Machine

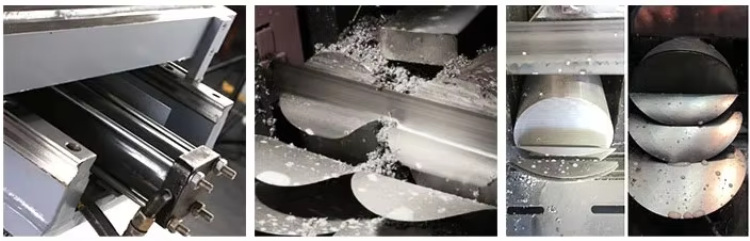

Sawing machine A machine tool that uses a circular saw blade, saw band or saw blade as its cutting tool to cut round metal, square metal, pipe and profile. The machining accuracy of sawing machine is generally not very high, and it is mainly used for cutting various bar, pipe and other profiles in the material preparation workshop. The driving wheel and driven wheel drive the saw blade to run, and the cutting direction of the saw blade is controlled by the guide rail control frame. Adjust the self rotating bearing to straighten the band saw blade and sweep it away through the broom. The guide rail control frame supported by the piston rod of the hydraulic oil cylinder drops into the sawing material, and the band sawing machine is equipped with a manual or hydraulic oil cylinder clamping locking mechanism and a hydraulic operation valve switch.
Features:
1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed,
1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed,
5. Stable performance, high efficiency, suitable for bulk material sawing.
